Automatic Corrugated Pipe Cutting Machine BJ-02AT

bojin — Tue, 11 Oct 2016 07:07:11 +0000

Operation Video

* Power supply: AC220V
* Voltage: 500W
* Weight: 85kg
* G.N: 72kg
* Cutting speed: 60-110 pcs/minute
* Accuracy: ±0.1mm
* Cutting length: 0.1-99999.9mm
* Cutting diameter: 30mm
* Size: 560x440x400mm(L*W*H）

Products brief introuction

This machine bellows deveopment and design specifically for automotive wiring harness industry,high-precison PLC control,easy to understand,fully automatic computer cutting machine can be used for round plastic hoses,bellows cutting,processing efficiency,stable and reliable,using a stepper motor feeding ,with a stable feeding,the length of the precise characteristics.

Characteristic description

* User-friendly software desigh-the whole computer set various specifications,retreat materials rotary switches,knobs and convery belt rising and falling blade replacement.
* The total number of the whole entire computer opertion–settings pipe cutting machine work,singular,after reaching a predetermined number of jobs,cut the tube will stop working;proportion of adjustable length,Send acceleration ,cutting speed, can debug.Pipe cutting machine continuously working properly.
* Past and design philosophy–in line with international standards of universal terminal machine,easy to operate,can quickly replace the mold,technical standards for operating personnel Requirements to a minimum,reduce personnel management costs.

Automatic Corrugated Pipe Cutting Machine BJ-02AT

Payment & Delivery

* MOQ: 1 Unit
* Port: Shanghai
* Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal
* Packaging Material: Paper/Wood
* Packaging Type: Cartons
* Delivery: We’ll arrange delivery within 3 days on the receipt of payment.

We Provide

* Best products and factory price.
* On-time delivery and the shortest delivery time.
* 1-year warranty. If our products cannot function properly within 12 months, we’ll offer spare parts for free; and you need to pay for the delivery.
* OEM and customized service.
* User manuals will go with relative machines.

Service

* QC: All products will be checked before delivery.
* Compensation: If any unqualified product is found, we’ll pay the compensation or send new qualified products to customers.
* Maintenance & Repair: In case of any maintenance or repair need, we’ll help to find out the problem and offer relative guidance.
* Operation Guidance: If you have any problem with operation, please feel free to contact us.

BJ-10ST High Speed Tube Cutting Machine

bojin — Mon, 06 Jun 2016 02:24:10 +0000

Operation Video

Specification

* Model: BJ-10ST
* Control Model: RAM control system
* Cutter: import SKD – 11 High speed steel
* Available Width: 0.1 ~ 100 mm
* Available Length: 1 ~ 100m
* Speed: 150 pcs/min
* Accuracy: ± 0.1mm
* Power Supply: AC110V 60Hz / AC220V 50Hz 250W
* Measurement: (L)360×(W)300×(H)350mm
* Weight : 30 Kg
* Display: LCD
* Operation Language: English or Chinese

Feature

* High speed: It can cut 150 cut per minute. (50mm long) Cutter speed adjustable.
* Electric operation: It works electrically only by setting length and quantity
* Arbitrary length and speed continuously adjustable
* Automatic grouping accrued and total cumulative count
* Batch pause and delay time can be set
* Lack of material automatic shutdown, unattended
* Can cut a variety of automatic cutting tubular strip material;
* High-speed stepper motor precisely controlled pipe cutting & tape length; tape length, speed adjustable;
* With LCD screen display,it is simple and convenient to operate.
* This machine can be used to automatically cut any kinds of tubular, ribbon, thread-like material
* Cutter time protection; total set; points to set; points to pause time adjustable;
* Available in a variety of manual operation, convenient debugging;
* LCD large screen visual display, operation simple and convenient;
* Heavy duty, high speed, high accuracy, designed for cutting non-adhesive materials.
* This machine changed a cutter mould .It can cut different tube.

Application:

* All kinds of Metal strap, Nickel strap, Solar energy welding strap, Plastic and Rubber strips ,Woven ribbon, Tape, Label Paper and other banding material of cutting , belt loop, ect.
* All kinds of Silicone tube,Plastic Tube, Medical tube ,Yellow wax tube.

Payment & Delivery

We Provide

Service

Infrared Label Cutting Machine BJ-06H

bojin — Wed, 09 Mar 2016 02:10:29 +0000

Operation Video

We manufacture automatic tape dispenser, auto label dispensers, auto label rewinders, label cutting machines, tape cutting machine, tube cutting machine, wire stripping machine, wire stripping&twisting machine etc. High quality & low price!

Features

* Belt slitting machine adopts electro mechanical integrating technology, it automatically adjusts the length data through the input of computer program.
* Automatically cutting various straps of different sizes such as braided tape, plastic tube, bootlace, plastic zipper, electrical wire, label, etc. All the data will be saved auto-matically before put off the switch. With features of high accuracy, high speed, easy to operate and stop working without materials. It’s an ideal machine for increasing of efficiency, improving quality and saving labour.

Character

* Compensation:It can recover the differences caused by the material flesibility dissimilarity.
* Memory: It will save the current datas automatically before the machine is closed.
* Decimal point:special decimal point function,raised the accuacy of the product consumedly.
* Self-check:when a defect in the system,LD screen will display breakdown source automatically,in order to expel in the convenient check.
* Automatic power failure: 1 hour after machine stopped working, the main driving system will break power supply automatically to promise the service life of machine.
* Automatic pause: once the material uses up,will stop a current work automatically.

Specifications and Index

* Knife: Cold knife & Infrared
* CUT LENGTH (mm): 15-99999
* MAX CUT WIDTH (mm): 110
* SPEED (Piece/min): 120
* WEIGHT (kg): 21.3/26.0
* VOLTAGE: AC 110V / 220V 50-60Hz
* POWER: 0.22KW
* LOADING RATE: 1
* PACKAGE SIZE (L.W.H) mm: 410*525*430

Payment & Delivery

We Provide

Service

Model Number	BJ-02	BJ-03	BJ-05	BJ-06
Available Width	5-70mm	5-110mm	5-80mm	5-100mm
Available Length	1-99999mm	15-99999mm	15-99999mm	15-99999mm
Knife	Cold cutting	Hot cutting	Cold cutting	Cold cutting
Speed	120pcs/min	120pcs/min	120pcs/min	120pcs/min

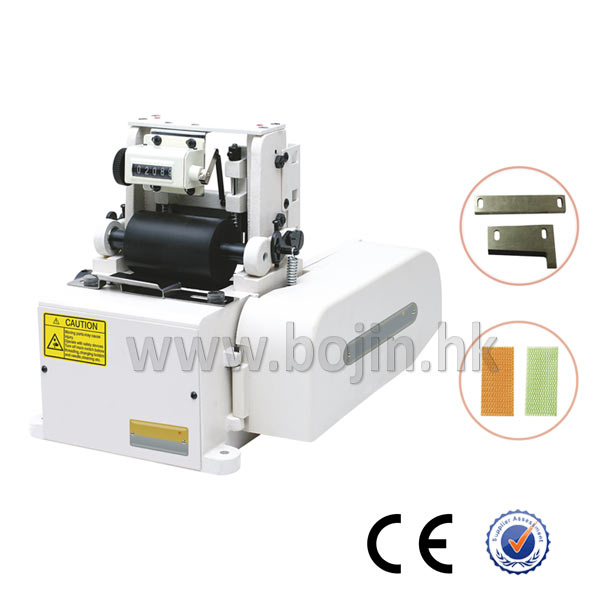

Tape cutter (Cold knife) BJ-812

bojin — Thu, 11 Dec 2014 08:12:12 +0000

Features

* It is a mechincal tape cutting machine. for clothing production lines with soft matericals, electrical equipment assmbly industries.
* Feeding can arbitrarily adjust the length of the counting function with automatic feed, higher efficiency, low noise, small size and light weight. easy to operate and so on.

Specifications

* Model: BJ-812 (round)
* Max.Cutting Width: 80mm
* Cutting Length: 15 ~ 100mm
* Cutting Speed: 80 ~ 90p/min
* Weight: 16kg
* Package Size: 400×275×285(L.W.H)mm

Apllication

* Woven tapes, soft tube, string, plastic zipper, small webbing, etc.

Tape cutter (Cold knife) BJ-812

Payment & Delivery

We Provide

Service

Model Number	BJ-02	BJ-03	BJ-05	BJ-06
Available Width	5-70mm	5-110mm	5-80mm	5-100mm
Available Length	1-99999mm	15-99999mm	15-99999mm	15-99999mm
Knife	Cold cutting	Hot cutting	Cold cutting	Cold cutting
Speed	120pcs/min	120pcs/min	120pcs/min	120pcs/min

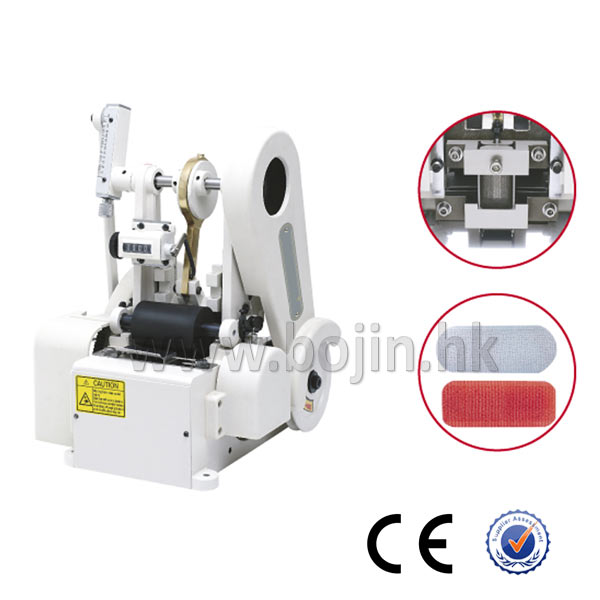

Hook and Loop Tape Cutter (round) BJ-811

bojin — Wed, 10 Dec 2014 07:29:03 +0000

Features

* It is specially designed for round Hook and Loop tape that need cetfillet.
* Feeding length can be freely adjusted, it has the length of the counting function with automatic feed, higher efficiency, low noise, small size and light weight. easy to operate.

Specifications

* Model: BJ-811 (round)
* Max.Cutting Width: 50mm
* Cutting Length: 15 ~ 1500mm
* Cutting Speed: 23 ~ 35p/min
* Weight: 23kg
* Package Size: 500×340×455(L.W.H)mm

Apllication

* Hook and Loop tapes.

Hook and Loop Tape Cutter (round) BJ-811

Payment & Delivery

We Provide

Service

Model Number	BJ-02	BJ-03	BJ-05	BJ-06
Available Width	5-70mm	5-110mm	5-80mm	5-100mm
Available Length	1-99999mm	15-99999mm	15-99999mm	15-99999mm
Knife	Cold cutting	Hot cutting	Cold cutting	Cold cutting
Speed	120pcs/min	120pcs/min	120pcs/min	120pcs/min

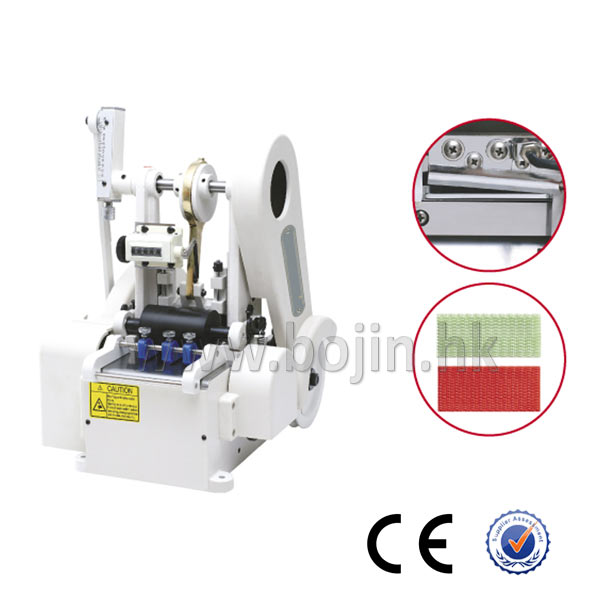

Tape cutter (Cold & hot knife) BJ-711

bojin — Wed, 10 Dec 2014 07:10:31 +0000

Features

* It is a mechincal tape cutting machine. for clothing production lines with soft matericals, electrical equipment assmbly industries.
* Feeding length can be freely adjusted, it has the counting function with automatic feed, automatically heat-sealing for nylon materials, woven label is cut neatly without fraying but not for heavy materials higher efficiency, low noise, small size and light weight, easy to operate, and so on.

Specifications

* Model: BJ-711 (Cold & hot knife)
* Cutting Width: 60mm
* Cutting Length: 15 ~ 1500mm
* Cutting Speed: 23 ~ 35p/min
* Weight: 23kg
* Blade Temp: 320°C
* Package Size: 500×340×455(L.W.H)mm

Apllication

* Woven tapes, ribbon tape, bag band, etc.

Tape cutter (Cold & hot knife) BJ-711

Payment & Delivery

We Provide

Service

Model Number	BJ-02	BJ-03	BJ-05	BJ-06
Available Width	5-70mm	5-110mm	5-80mm	5-100mm
Available Length	1-99999mm	15-99999mm	15-99999mm	15-99999mm
Knife	Cold cutting	Hot cutting	Cold cutting	Cold cutting
Speed	120pcs/min	120pcs/min	120pcs/min	120pcs/min

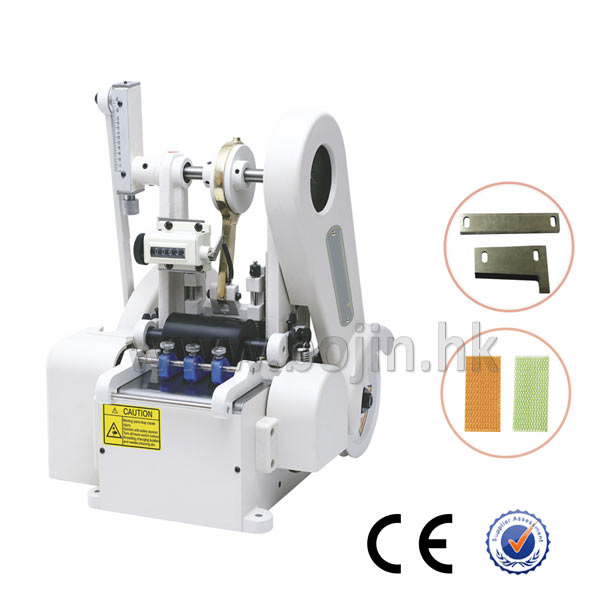

Tape cutter (Cold knife) BJ-511

bojin — Wed, 10 Dec 2014 08:34:35 +0000

Features

Specifications

* Model: BJ-511 (Cold knife)
* Max.Cutting Width: 50mm
* Cutting Length: 15 ~ 1500mm
* Cutting Speed: 23 ~ 35p/min
* Weight: 23kg
* Package Size: 500×340×455(L.W.H)mm

Apllication

* Woven tapes, soft tube, string, plastic zipper, small webbing, etc.

Tape cutter (Cold knife) BJ-511

Payment & Delivery

We Provide

Service

Model Number	BJ-02	BJ-03	BJ-05	BJ-06
Available Width	5-70mm	5-110mm	5-80mm	5-100mm
Available Length	1-99999mm	15-99999mm	15-99999mm	15-99999mm
Knife	Cold cutting	Hot cutting	Cold cutting	Cold cutting
Speed	120pcs/min	120pcs/min	120pcs/min	120pcs/min

XC-801 PVC Tube Cutting Machine

bojin — Thu, 23 Jan 2014 04:47:30 +0000

Features

* Fit for cutting sheet copper, hot-shrunk tube, PVC tube, electrode, plastic sheet, flat ribbon cable etc.
* Step motor control, high accuracy.
* Cutting length fine tuning (depending on wire material)
* Single-step / continuous operation.
* Can carry inching operation in wire feeding and cutter alignment.

Specification

* Model: XC-801
* Shape Size: 450mmX 370mmX 340mm
* Weight: 45Kg
* Display Way: Digital Display
* Power Supply: AC220V/50Hz
* Power Rating : 150W
* Cutting Length: 0.1mm~10m
* Cutting Tolerance: 0.002 X L mm(L=Cutting Length)
* Cutting Width: 0.1mm – 100mm
* Rollers Press Adjustment: Setup
* Speed Adjustment: 0-9
* Drive Way: Two Rollers Drive At The Same Time

Payment & Delivery

We Provide

Service

XC-802 Pipe/Tube Cutting Machine

bojin — Thu, 23 Jan 2014 04:46:18 +0000

Features

Specification

* Model: XC-802
* Shape Size: 360×340×330mm
* Weight: 45Kg
* Display Way: LED Display
* Power Supply: AC220V/50Hz
* Power Rating : 180W
* Cutting Length: 5 – 9999mm
* Cutting Tolerance: 0.002 X L mm(L=Cutting Length)
* Cutting Width: 0.1mm – 80mm
* Conductor seetional: 0.1 – 4.0mm2
* Blade Material: Tungsten steel
