Specification

* Model: XC-0316
* Wire Size Range: 0.3 ~ 2.5mm
* Stripping Length: 5 ~ 50mm

Payment & Delivery

* MOQ: 1 Unit
* Port: Shanghai
* Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal
* Packaging Material: Paper/Wood
* Packaging Type: Cartons
* Delivery: We’ll arrange delivery within 3 days on the receipt of payment.

We Provide

* Best products and factory price.
* On-time delivery and the shortest delivery time.
* 1-year warranty. If our products cannot function properly within 12 months, we’ll offer spare parts for free; and you need to pay for the delivery.
* OEM and customized service.
* User manuals will go with relative machines.

Service

* QC: All products will be checked before delivery.
* Compensation: If any unqualified product is found, we’ll pay the compensation or send new qualified products to customers.
* Maintenance & Repair: In case of any maintenance or repair need, we’ll help to find out the problem and offer relative guidance.
* Operation Guidance: If you have any problem with operation, please feel free to contact us.

Specification

Stripping Method:4 pcs blade
Wire Size:Φ0.3-4.0mm
Adjust Method:Screws
Mounting:Portable
Lead-wire Type:?Single wire
Power Supply:50Hz
Measurement:270×170×130mm

Payment & Delivery

* MOQ: 1 Unit
* Port: Shanghai
* Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal
* Packaging Material: Paper/Wood
* Packaging Type: Cartons
* Delivery: We’ll arrange delivery within 3 days on the receipt of payment.

We Provide

* Best products and factory price.
* On-time delivery and the shortest delivery time.
* 1-year warranty. If our products cannot function properly within 12 months, we’ll offer spare parts for free; and you need to pay for the delivery.
* OEM and customized service.
* User manuals will go with relative machines.

Service

* QC: All products will be checked before delivery.
* Compensation: If any unqualified product is found, we’ll pay the compensation or send new qualified products to customers.
* Maintenance & Repair: In case of any maintenance or repair need, we’ll help to find out the problem and offer relative guidance.
* Operation Guidance: If you have any problem with operation, please feel free to contact us.

* Availabel Wire Size: ?1.0-3.5mm (Need not change blade for different wire size)
* Stripping Length: 2 – 38mm
* Power Supply: 220V / 50Hz
* Power Rating: 75W
* Measurement: 185×115×80mm
* Net Weight: 2.0Kg

Payment & Delivery

* MOQ: 1 Unit
* Port: Shanghai
* Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal
* Packaging Material: Paper/Wood
* Packaging Type: Cartons
* Delivery: We’ll arrange delivery within 3 days on the receipt of payment.

We Provide

* Best products and factory price.
* On-time delivery and the shortest delivery time.
* 1-year warranty. If our products cannot function properly within 12 months, we’ll offer spare parts for free; and you need to pay for the delivery.
* OEM and customized service.
* User manuals will go with relative machines.

Service

* QC: All products will be checked before delivery.
* Compensation: If any unqualified product is found, we’ll pay the compensation or send new qualified products to customers.
* Maintenance & Repair: In case of any maintenance or repair need, we’ll help to find out the problem and offer relative guidance.
* Operation Guidance: If you have any problem with operation, please feel free to contact us.

Detailed description:

* Adopt new processing technic , design with particular appearance.
* Cutter material: 4 sticks of tungsten steel alloy. cutter point is centripetal cutting, taper can be adjusted.
* This is product has increased our work efficiency ten times and overcome a difficulty that cant remove the paint clearly on the bent wires.
* It can strip any hard insullac, enamel paint, ML, lsonel etc., but not damage the wires.
* It is very suitable for stripping the wire till the bottom of wire loop. Easy to operate.
* It has end setting of strip length, so it can control the strip length.
* Without pollution as the shield.

Instruction:

* Plug the power supply into AC,220v outlet.
* Remove the shield on the cutter. Adjust the strip cut point as the wire size you want, then loose the stable cutter and headless hexagon socket head cap screw.
* Turn adjustive nut (adjust the blade size, clockwise is large, and anticlockwise is small ),in general, please adjust the blade size bigger than the wire size. then adjust and fix nuts.
* Finish adjusting the limit pin and locking, take on the shield.
* Turn on the power button, The engine started up immediately
* Please insert the varnished wire into it, it will run.

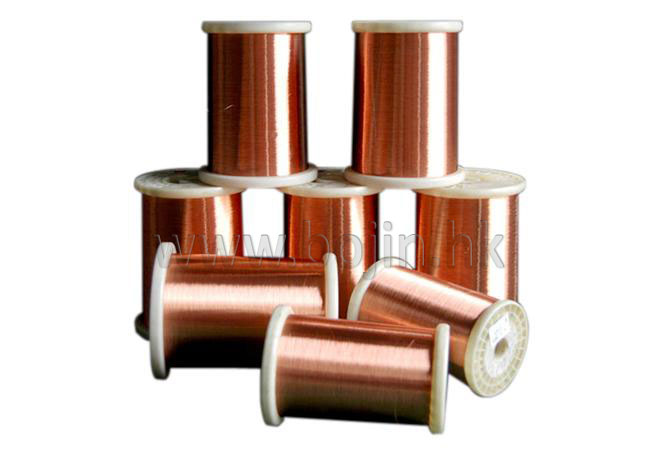

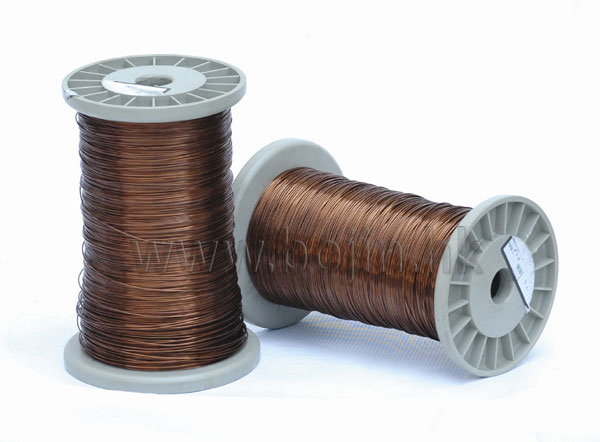

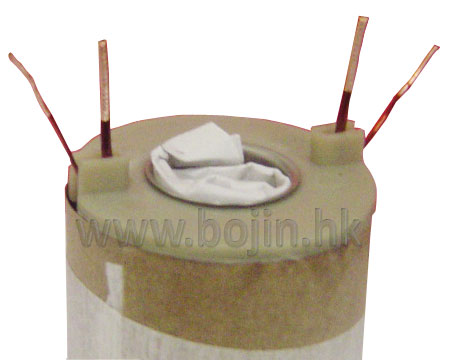

Sample as below:

Payment & Delivery

* MOQ: 1 Unit
* Port: Shanghai
* Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal
* Packaging Material: Paper/Wood
* Packaging Type: Cartons
* Delivery: We’ll arrange delivery within 3 days on the receipt of payment.

We Provide

* Best products and factory price.
* On-time delivery and the shortest delivery time.
* 1-year warranty. If our products cannot function properly within 12 months, we’ll offer spare parts for free; and you need to pay for the delivery.
* OEM and customized service.
* User manuals will go with relative machines.

Service

* QC: All products will be checked before delivery.
* Compensation: If any unqualified product is found, we’ll pay the compensation or send new qualified products to customers.
* Maintenance & Repair: In case of any maintenance or repair need, we’ll help to find out the problem and offer relative guidance.
* Operation Guidance: If you have any problem with operation, please feel free to contact us.

Specification

* Stripping Method: Fiberglass wheel
* Wire Size:Φ0.04-0.33mm
* Adjust Method:Two wheels
* Mounting: fixed on table top
* Lead-wire Type:Single or multiple
* Power Supply:AC220V 50Hz
* Measurement:330×230×220mm

Payment & Delivery

* MOQ: 1 Unit
* Port: Shanghai
* Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal
* Packaging Material: Paper/Wood
* Packaging Type: Cartons
* Delivery: We’ll arrange delivery within 3 days on the receipt of payment.

We Provide

* Best products and factory price.
* On-time delivery and the shortest delivery time.
* 1-year warranty. If our products cannot function properly within 12 months, we’ll offer spare parts for free; and you need to pay for the delivery.
* OEM and customized service.
* User manuals will go with relative machines.

Service

* QC: All products will be checked before delivery.
* Compensation: If any unqualified product is found, we’ll pay the compensation or send new qualified products to customers.
* Maintenance & Repair: In case of any maintenance or repair need, we’ll help to find out the problem and offer relative guidance.
* Operation Guidance: If you have any problem with operation, please feel free to contact us.

Specification

* Model Number: XC-680B
* Stripping Method:Steel wire brush
* Wire Size:Φ0.14-1.33mm
* Adjust Method:Two brushes
* Mounting:fixed on table top
* Lead-wire Type:Single or multiple
* Power Supply:AC220V
* Measurement:380×300×250mm

Payment & Delivery

* MOQ: 1 Unit
* Port: Shanghai
* Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal
* Packaging Material: Paper/Wood
* Packaging Type: Cartons
* Delivery: We’ll arrange delivery within 3 days on the receipt of payment.

We Provide

* Best products and factory price.
* On-time delivery and the shortest delivery time.
* 1-year warranty. If our products cannot function properly within 12 months, we’ll offer spare parts for free; and you need to pay for the delivery.
* OEM and customized service.
* User manuals will go with relative machines.

Service

* QC: All products will be checked before delivery.
* Compensation: If any unqualified product is found, we’ll pay the compensation or send new qualified products to customers.
* Maintenance & Repair: In case of any maintenance or repair need, we’ll help to find out the problem and offer relative guidance.
* Operation Guidance: If you have any problem with operation, please feel free to contact us.

Specification

* Stripping enamel covered wires
* Wire Diameter 0.1~10mm
* Stripping length 3mm~ no limit
* Steel wire brush
* 220V

Payment & Delivery

* MOQ: 1 Unit
* Port: Shanghai
* Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal
* Packaging Material: Paper/Wood
* Packaging Type: Cartons
* Delivery: We’ll arrange delivery within 3 days on the receipt of payment.

We Provide

* Best products and factory price.
* On-time delivery and the shortest delivery time.
* 1-year warranty. If our products cannot function properly within 12 months, we’ll offer spare parts for free; and you need to pay for the delivery.
* OEM and customized service.
* User manuals will go with relative machines.

Service

* QC: All products will be checked before delivery.
* Compensation: If any unqualified product is found, we’ll pay the compensation or send new qualified products to customers.
* Maintenance & Repair: In case of any maintenance or repair need, we’ll help to find out the problem and offer relative guidance.
* Operation Guidance: If you have any problem with operation, please feel free to contact us.

Parameters

* Model:XC-880C
* Cutting Length: 0.01mm-10m
* Boundary dimension: L*M*H=340*387*230
* Cutting Allowance:(0.1-0.2)mm
* Weight:21Kg
* Cutting Speed:15000pcs/h
* Power Source: AC220V/50HZ
* Blade Material: Import Tungsten Steel
* Rated Power:100W
* Cutting Quality:Excellent
* Max.Power: 200W
* Speed Adjustment:1-6

NOTE:
L=Cutting length It is used for the diameter of core of cable range from 0.25 to 1.32mm
XC-880C Wire diameter:0.12-1.2MM
XC-890C Wire diameter:0.7-3.0MM

Payment & Delivery

* MOQ: 1 Unit
* Port: Shanghai
* Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal
* Packaging Material: Paper/Wood
* Packaging Type: Cartons
* Delivery: We’ll arrange delivery within 3 days on the receipt of payment.

We Provide

* Best products and factory price.
* On-time delivery and the shortest delivery time.
* 1-year warranty. If our products cannot function properly within 12 months, we’ll offer spare parts for free; and you need to pay for the delivery.
* OEM and customized service.
* User manuals will go with relative machines.

Service

* QC: All products will be checked before delivery.
* Compensation: If any unqualified product is found, we’ll pay the compensation or send new qualified products to customers.
* Maintenance & Repair: In case of any maintenance or repair need, we’ll help to find out the problem and offer relative guidance.
* Operation Guidance: If you have any problem with operation, please feel free to contact us.

XC-690C Enameled Wire Stripping Machine use Taiwan advanced wire stripping technology. It is suit any standard of enameled wire. Can fast strip off the insulator on the surface of wire and keep it smooth .The function of the machine is ascendance. It can replace tranditional use knife strip, grinding wheel or grinding paper polish and liquid medicine corrode method. Not only can inprove work efficiency, but also have high solding character. It is the perfect machine for motor, meter, transformer, electron, family use wiring, electromotion tools, coil producer and maintenance industy. Our XC-690C get electron nonpolar adjuster, motor and stripping blade together. Use iegerity and durable fine switch, so the machine have a lot of properties such as; stripping speed very fast, high work efficiency, easy to use, function stable, fault rate low and design novelty.

Properties and parameter

1. Wire Size Range: 0.3 ~ 6.0mm
2. Power Supply: ~220V 100W
3. Mounting: Hand held and electromotion
4. Stripping Length: 3 ~6mm
5.Speed adjust: Non-polar adjust 600pcs/hour
6. Measurement: 270*170*130mm

Stripping method

1. Put the head of the wire which is need stripping in the middle of the the knife rest. Switch-on the power to start the motor
2. Move the head of the wire follow the reverse of axes.
3. Switch -off the power. motor stop running.

Attention

1. When you stripping different standard of enameled wire, we can adjust the speed adjuster at the end of the machine (1 gear slowest .6 gear fastest). For small diameter wire you adjust to the “slow” gear and for big diameter wire you need adjust to the”fast”If one time have not stripping cleanly, you need improve speed to stripping cleanly. If wire damage during you adjust the speed, you need slow the speed until fit the wire .follow the method infront to adjust speed to fit different diameter of wire.
2. The machine shell must connet to ground safety.
3. Before you stripping the wire, you should pull straight the wire to aviod wire can not get the middle of the blade.
4. After a long time use, you can take off the cover to clean paint powder.

Payment & Delivery

* MOQ: 1 Unit
* Port: Shanghai
* Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal
* Packaging Material: Paper/Wood
* Packaging Type: Cartons
* Delivery: We’ll arrange delivery within 3 days on the receipt of payment.

We Provide

* Best products and factory price.
* On-time delivery and the shortest delivery time.
* 1-year warranty. If our products cannot function properly within 12 months, we’ll offer spare parts for free; and you need to pay for the delivery.
* OEM and customized service.
* User manuals will go with relative machines.

Service

* QC: All products will be checked before delivery.
* Compensation: If any unqualified product is found, we’ll pay the compensation or send new qualified products to customers.
* Maintenance & Repair: In case of any maintenance or repair need, we’ll help to find out the problem and offer relative guidance.
* Operation Guidance: If you have any problem with operation, please feel free to contact us.

Related Wire stripping machines

XC-520C Enameled Wire Stripping Machine use Taiwan advanced wire stripping technology. It is suit any standard of enameled wire. Can fast strip off the insulator on the surface of wire and keep it smooth .The function of the machine is ascendance. It can replace tranditional use knife strip, grinding wheel or grinding paper polish and liquid medicine corrode method.Not only can inprove work efficiency, but also have high solding character. It is the perfect machine for motor,meter,transformer,electron, family use wiring, electromotion tools,coil producer and maintenance industy. Our XC-520C get electron nonpolar adjuster,motor and stripping blade together. Use iegerity and durable fine switch,so the machine have a lot of properties such as; stripping speed very fast,high work efficiency, easy to use, function stable, fault rate low and design novelty.

Properties and parameter

1. Wire Size Range: 0.35 ~ 6.50mm
2. Power Supply: 220V/50Hz 120W
3. Mounting: Hand held and electromotion
4. Stripping Length: 1 ~ 70mm
5.Speed adjust: 2800r/min
6. Measurement: 270*165*170mm
7. Weight: 6.8kg

Stripping method
1. Put the head of the wire which is need stripping in the middle of the the knife rest. Switch-on the power to start the motor
2. Move the head of the wire follow the reverse of axes.
3. Switch -off the power. motor stop running.

Attention

1.When you stripping different standard of enameled wire, we can adjust the speed adjuster at the end of the machine(1 gear slowest .6 gear fastest). For small diameter wire you adjust to the “slow” gear and for big diameter wire you need adjust to the”fast”If one time have not stripping cleanly,you need improve speed to stripping cleanly.If wire damage during you adjust the speed,you need slow the speed until fit the wire .follow the method infront to adjust speed to fit different diameter of wire.
2.The machine shell must connet to ground safety.
3.Before you stripping the wire,you should pull straight the wire to aviod wire can not get the middle of the blade.
4.After a long time use, you can take off the cover to clean paint powder.

Payment & Delivery

* MOQ: 1 Unit
* Port: Shanghai
* Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal
* Packaging Material: Paper/Wood
* Packaging Type: Cartons
* Delivery: We’ll arrange delivery within 3 days on the receipt of payment.

We Provide

* Best products and factory price.
* On-time delivery and the shortest delivery time.
* 1-year warranty. If our products cannot function properly within 12 months, we’ll offer spare parts for free; and you need to pay for the delivery.
* OEM and customized service.
* User manuals will go with relative machines.

Service

* QC: All products will be checked before delivery.
* Compensation: If any unqualified product is found, we’ll pay the compensation or send new qualified products to customers.
* Maintenance & Repair: In case of any maintenance or repair need, we’ll help to find out the problem and offer relative guidance.
* Operation Guidance: If you have any problem with operation, please feel free to contact us.

Related Wire stripping machines
