This model supports multiple working mode, such as coaxial wire cutting and stripping, ultra-short wire cutting and stripping, jacket wire cutting and stripping, multi place stripping, etc. All process parameters can be saved along in the touch screen. The customer has his choice of rubber rollers or iron rollers depending on his requirements. This stripping machine is equipped with superior tungsten steel blades/knife, guarantee smooth and stable working performance.
Product Specification:
* Display:7 inch LCD with English Menu
* Suitable Cable:2 core and 3 core power cord
* Suitable Cable Diameter:4-8mm
* Cutting Length: 9999 mm
* Outer Jacket Stripping Length:30-100mm
* Stripping Speed:400-600Pcs/h
* Stripping Accuracy:± (0.002mm× Stripping Length)
* Cutting Accuracy:± (0.002mm× Cutting Length)
* Memory Function: Max. 40 group of programs
* Speed: 350-650pcs/h
* Power Rating: 600W
* Power Supply:AC220V/110V 50/60HZ
* Net Weight: 120Kg
* Air Pressure: 0.4~0.6Mpa
* Dimensions: 770 × 740 × 400mm
BJ-HT4 Double line Multi-core Round Cable Cutting and Stripping Machine
Payment & Delivery
* MOQ: 1 Unit
* Port: Shanghai
* Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal
* Packaging Material: Paper/Wood
* Packaging Type: Cartons
* Delivery: We’ll arrange delivery within 3 days on the receipt of payment.
We Provide
* Best products and factory price.
* On-time delivery and the shortest delivery time.
* 1-year warranty. If our products cannot function properly within 12 months, we’ll offer spare parts for free; and you need to pay for the delivery.
* OEM and customized service.
* User manuals will go with relative machines.
Service
* QC: All products will be checked before delivery.
* Compensation: If any unqualified product is found, we’ll pay the compensation or send new qualified products to customers.
* Maintenance & Repair: In case of any maintenance or repair need, we’ll help to find out the problem and offer relative guidance.
* Operation Guidance: If you have any problem with operation, please feel free to contact us.
Related Terminal Crimping Machine
Operation Video
Technique Parameter:
* Name: BJ-06TZ Coaxial Stripping Machine
* Cable Type: coaxial-cable
* Memory: 40
* LCD Display size: 153mm*85mm English & Chinese Panel
* Max. Cable Dimater: up to 4mm ?& 5.5mm (0.64-4.0mm) (1.0-5.5mm)
* Cutting depth of the unit: 0.01mm
* Max cutting length: 99,999.9(mm)
* Max. peeling length: Tail & Right: max200mm, Head & Left: Max45mm
* Max. peeling stratums: 6
* Drive mode: Motor/ Ball screw drive(Japan)
* Display: Touch sn

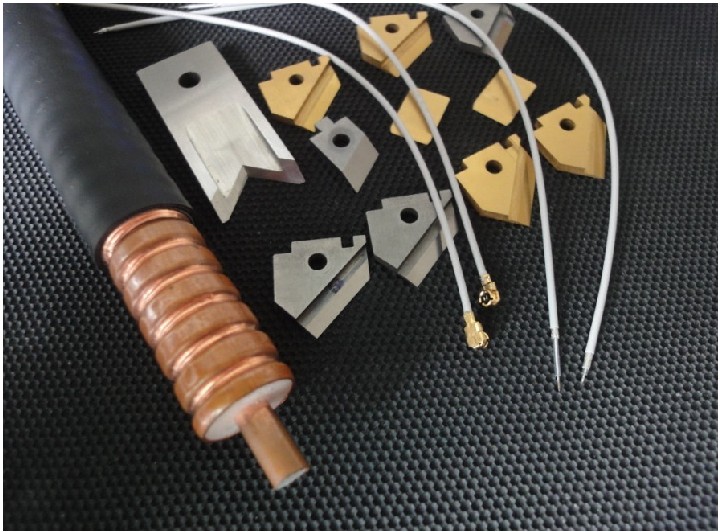

* Blade: 4 pieces Material:imported tungsten steel(Switzerland)+ high-speed steel
* Centering slab: 4 pieces Material:imported tungsten steel
* Trapper: Automatic self aligning,motor drive, the clamping process control
* Productivity: 500-800pcs/h(depend on the cable length and type)
* Power: AC220V/110V 50/60HZ?? 700W
* Weight: 100Kg
* Boundary dimension: 760*700*400mm
* Work environment: -5—45°C,moderate dry,non-shake
Payment & Delivery
* MOQ: 1 Unit
* Port: Shanghai
* Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal
* Packaging Material: Paper/Wood
* Packaging Type: Cartons
* Delivery: We’ll arrange delivery within 3 days on the receipt of payment.
We Provide
* Best products and factory price.
* On-time delivery and the shortest delivery time.
* 1-year warranty. If our products cannot function properly within 12 months, we’ll offer spare parts for free; and you need to pay for the delivery.
* OEM and customized service.
* User manuals will go with relative machines.
Service
* QC: All products will be checked before delivery.
* Compensation: If any unqualified product is found, we’ll pay the compensation or send new qualified products to customers.
* Maintenance & Repair: In case of any maintenance or repair need, we’ll help to find out the problem and offer relative guidance.
* Operation Guidance: If you have any problem with operation, please feel free to contact us.
Operation Video
Technique Parameter:
* Model: BJ-09MAX
* Power supply: AC220/ AC110/60HZ/50HZ
* Rating: 2000W
* Display: LCD touch screen / English operation
* Cutting length: 0.1～100m
* Stripping length: Head:0-100 Tail: 0-100
* Cutting Tolerance: ± (0.0001xL)
* Core cross-section cut-line: 16～150 mm2
* Conduit diameter:￠25
* Appropriate wire stripping: PVC, Teflon, glass wire, multi steel-wire
* Blade material: High speed steel
* Speed for 150 mm2(L=200MM PCS/H): 1500-2000
* Drive Mode: Sixteen drives
Wire Cutting And Stripping Machine BJ-09MAX
Wire Cutting And Stripping Machine BJ-09MAX
Wire Cutting And Stripping Machine BJ-09MAX
Payment & Delivery
* MOQ: 1 Unit
* Port: Shanghai
* Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal
* Packaging Material: Paper/Wood
* Packaging Type: Cartons
* Delivery: We’ll arrange delivery within 3 days on the receipt of payment.
We Provide
* Best products and factory price.
* On-time delivery and the shortest delivery time.
* 1-year warranty. If our products cannot function properly within 12 months, we’ll offer spare parts for free; and you need to pay for the delivery.
* OEM and customized service.
* User manuals will go with relative machines.
Service
* QC: All products will be checked before delivery.
* Compensation: If any unqualified product is found, we’ll pay the compensation or send new qualified products to customers.
* Maintenance & Repair: In case of any maintenance or repair need, we’ll help to find out the problem and offer relative guidance.
* Operation Guidance: If you have any problem with operation, please feel free to contact us.
Specification
1. No need power, machine can work when it connect to the air source.
2. Sensor control, no need foot pedal, stripping length of both ends are accurate, very safe to use.
3. Stripping length, cutting depth, middle-strip and whole strip can be adjusted by using calibrated rotary knob.
4.Adopt 90°”V” shape cutter, strong universality, no need to change cutter when processing different wires.
5. Wire size range: AWG32-12(0.03-4MM)
6. Stripping length: 1mm-20mm
7. Small size and light weight (2kgs only), easy to move, it can work anywhere with air source.
Application
BJ-0320 can process cables in extremely short time. It’s no need to change cutter by using universality cutter
system, save a lot of time. The main features of this machine are high accuracy, high efficiency, fast return
of investment. Compact design integrate multi processing progresses in one machine, and it has high efficiency
when processing wire harness and multi-core cables.
Cable Wire Type
Discrete wire, solid metal wire, stranded wire, single-core cable, electric wire, electric cable, rubber-covered wire,
PUR PVC Teflon?.
Specification
* Cable cross section: 0.03 – 2.08 mm2 (32 – 14 AWG)
* Max. cable outer diameter: 3.2 mm (0.12“)
* Stripping accuracy (whole strip): 1 mm (0.019“)
* Stripping accuracy (part of strip): 2 mm (0.078“)
* Wire diameter accuracy: 0.01 mm (0.001“)
* Max. stripping length: 18 mm
* Processing time: 0.3s
* Dimension: 265 x 70 x 135 mm (10.4“ x 2.8“ x 5.3“)
* Weight: 2.0 kg (4.4 lbs.)
* Gross weight: 2.4 kg (5.3 lbs.)
* Air pressure: 0.5Pa-0.8Pa

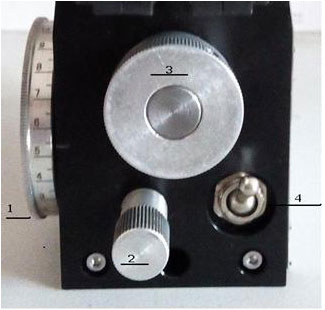

Machine adjustment
Adjustable processing parameters
Rotary knob 1: striping length adjustment, user can adjust the rotary knob to corresponding scale which needed.
It can rotate anticlockwise only.
Rotary knob 2: striping stoke adjustment, user can fix middle strip, whole strip as per needed. When it rotated clockwise, stripping stroke decrease, then machine do middle strip. While stripping stroke increase, machine do middle strip when it rotated anticlockwise.
Rotary knob 3: Cutting depth adjustment, when machine processing cable wire with different diameter, can adjust the cutting depth to appropriate scale to avoid core wire injury or insulating layer unable to peel off. Rotated clockwise cutting depth decrease, while cutting depth increase when it rotated anticlockwise.
Switch 4: Turn the switch upward, cut off air source, turn downward, access to air source, machine can work.

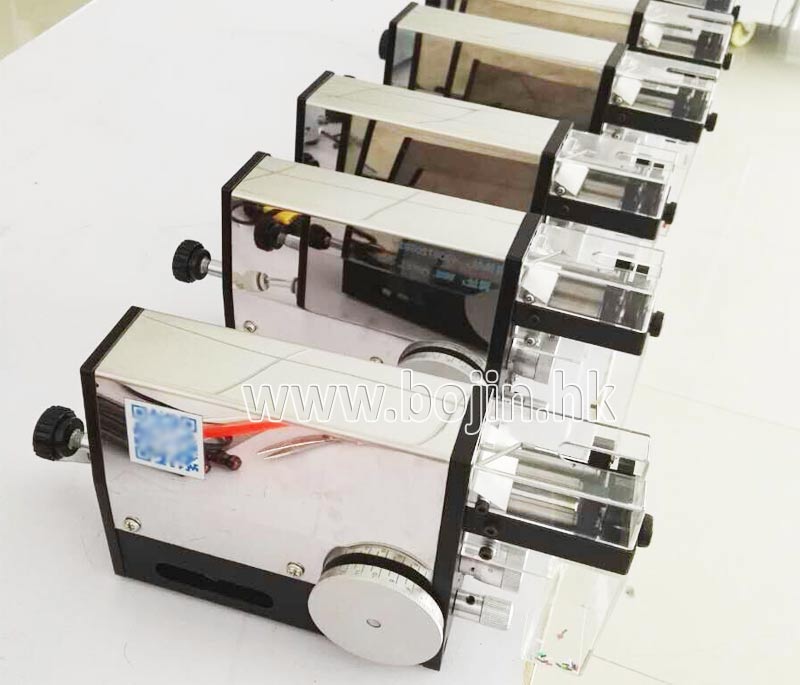

Magnetic Pneumatic Wire Stripping Machine BJ-0320
Payment & Delivery
* MOQ: 1 Unit
* Port: Shanghai
* Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal
* Packaging Material: Paper/Wood
* Packaging Type: Cartons
* Delivery: We’ll arrange delivery within 3 days on the receipt of payment.
We Provide
* Best products and factory price.
* On-time delivery and the shortest delivery time.
* 1-year warranty. If our products cannot function properly within 12 months, we’ll offer spare parts for free; and you need to pay for the delivery.
* OEM and customized service.
* User manuals will go with relative machines.
Service
* QC: All products will be checked before delivery.
* Compensation: If any unqualified product is found, we’ll pay the compensation or send new qualified products to customers.
* Maintenance & Repair: In case of any maintenance or repair need, we’ll help to find out the problem and offer relative guidance.
* Operation Guidance: If you have any problem with operation, please feel free to contact us.
Coil Winding Machine FD-900
* Voltage: 220V 50Hz
* Power: 400W
* Spool quantity: 1
* Max. wire guiding width: 110mm
* Wire guiding precision: 0.001mm
* Max. coil outer diameter: 200mm
* Suitable wire gauge: 0.05~1mm
* Winding speed: 6000rpm(adjustable)
* Storable winding: 999
* Counting range: 0-99999 turns
* Counting precision: 0.1 turn
* Spool motor: brushless motor
* Wire guiding motor: stepper motor
* Net Weight: 30kg
* Demension: 600×350×400mm
Coil Winding Machine FD-900
Coil Winding Machine FD-900
Payment & Delivery
* MOQ: 1 Unit
* Port: Shanghai
* Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal
* Packaging Material: Paper/Wood
* Packaging Type: Cartons
* Delivery: We’ll arrange delivery within 3 days on the receipt of payment.
We Provide
* Best products and factory price.
* On-time delivery and the shortest delivery time.
* 1-year warranty. If our products cannot function properly within 12 months, we’ll offer spare parts for free; and you need to pay for the delivery.
* OEM and customized service.
* User manuals will go with relative machines.
Service
* QC: All products will be checked before delivery.
* Compensation: If any unqualified product is found, we’ll pay the compensation or send new qualified products to customers.
* Maintenance & Repair: In case of any maintenance or repair need, we’ll help to find out the problem and offer relative guidance.
* Operation Guidance: If you have any problem with operation, please feel free to contact us.
Coil Winding Machine FD-920
* Voltage: 220V50Hz
* Power: 1KW
* Spool quantity: 1
* Max. wire guiding width: 140mm
* Wire guiding precision: 0.001mm
* Max. coil outer diameter: 200mm
* Suitable wire gauge: 0.05-2mm
* Winding speed: 1500rpm
* Storable winding: 999
* Counting range: 0-99999 turns
* Counting precision: 0.1 turn
* Spool motor: three-phase motor
* Wire guiding motor: stepping motor
Coil Winding Machine FD-920
Payment & Delivery
* MOQ: 1 Unit
* Port: Shanghai
* Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal
* Packaging Material: Paper/Wood
* Packaging Type: Cartons
* Delivery: We’ll arrange delivery within 3 days on the receipt of payment.
We Provide
* Best products and factory price.
* On-time delivery and the shortest delivery time.
* 1-year warranty. If our products cannot function properly within 12 months, we’ll offer spare parts for free; and you need to pay for the delivery.
* OEM and customized service.
* User manuals will go with relative machines.
Service
* QC: All products will be checked before delivery.
* Compensation: If any unqualified product is found, we’ll pay the compensation or send new qualified products to customers.
* Maintenance & Repair: In case of any maintenance or repair need, we’ll help to find out the problem and offer relative guidance.
* Operation Guidance: If you have any problem with operation, please feel free to contact us.
Coil Winding Machine FD-980
* Voltage: 380V50Hz
* Power: 2.5KW
* Spool quantity: 1
* Max. wire guiding width: 180mm
* Wire guiding precision: 0.001mm
* Max. coil outer diameter: 300mm
* Suitable wire gauge: 0.05-3mm
* Winding speed: 850rpm（adjustable）
* Storable winding: 999
* Counting range: 0-99999 turns
* Counting precision: 0.1 turn
* Spool motor: three-phase motor
Coil Winding Machine FD-980?Sample
Coil Winding Machine FD-980?Sample
Coil Winding Machine FD-980?Sample
Coil Winding Machine FD-980?Sample
Coil Winding Machine FD-980?Sample
Coil Winding Machine FD-980?Sample
Coil Winding Machine FD-980?Sample
Coil Winding Machine FD-980?Sample
Payment & Delivery
* MOQ: 1 Unit
* Port: Shanghai
* Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal
* Packaging Material: Paper/Wood
* Packaging Type: Cartons
* Delivery: We’ll arrange delivery within 3 days on the receipt of payment.
We Provide
* Best products and factory price.
* On-time delivery and the shortest delivery time.
* 1-year warranty. If our products cannot function properly within 12 months, we’ll offer spare parts for free; and you need to pay for the delivery.
* OEM and customized service.
* User manuals will go with relative machines.
Service
* QC: All products will be checked before delivery.
* Compensation: If any unqualified product is found, we’ll pay the compensation or send new qualified products to customers.
* Maintenance & Repair: In case of any maintenance or repair need, we’ll help to find out the problem and offer relative guidance.
* Operation Guidance: If you have any problem with operation, please feel free to contact us.
Scrap Cable Stripping machine Portable For AWG16-30
1) This machine is adopted with most advanced rotary blades, very light and portable.
2) Highly portable unit for the precise stripping of discrete wires and small multi-conductor cable.
3) Production capacity varies depends on the type of production
4) One-year warranty, full-life service
5) CE Approved
Technical parameters of machine
* Stripping length: 1.5 to 10mm
* Stripping range: Stranded wire: 0.05 to2.5mm2 AWG 30 to 14
* Solid wire:0.25 to 2.5 mm dia. AWG 10 to 30
* Max.insulation :Diameter: 4.2mm (1.4mm with clamping head )
* Min.free length Of cable jacket: 12.5mm+stripping length
* Stripping length: 1.5-10mm
* Strippable wire: Teflon, PVC or similar insulation type
* Rated voltage: 220 volt 50 Hz 110 volt 60 Hz
* Rated current: 260mA 0.44amp
* Rated input: 20watt
* Power cord: 1.8m long with molded on plug
German standard
North American
* Weight: 6.5kg
* Machine dim.: 340mm*150mm*170mm
Packing:
1, Outside Package, standard export wooden cases.
2, Inner package, stretch film.
Delivery detail, about 7 work days after payment.
Portable wire stripper BJ-0319
Portable wire stripper BJ-0319
Portable wire stripper BJ-0319
Portable wire stripper BJ-0319

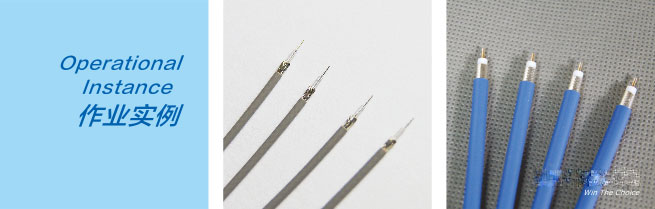

Portable wire stripper BJ-0319 samples
Portable wire stripper BJ-0319 samples
Payment & Delivery
* MOQ: 1 Unit
* Port: Shanghai
* Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal
* Packaging Material: Paper/Wood
* Packaging Type: Cartons
* Delivery: We’ll arrange delivery within 3 days on the receipt of payment.
We Provide
* Best products and factory price.
* On-time delivery and the shortest delivery time.
* 1-year warranty. If our products cannot function properly within 12 months, we’ll offer spare parts for free; and you need to pay for the delivery.
* OEM and customized service.
* User manuals will go with relative machines.
Service
* QC: All products will be checked before delivery.
* Compensation: If any unqualified product is found, we’ll pay the compensation or send new qualified products to customers.
* Maintenance & Repair: In case of any maintenance or repair need, we’ll help to find out the problem and offer relative guidance.
* Operation Guidance: If you have any problem with operation, please feel free to contact us.
Specification
This model supports multiple working mode, such as coaxial wire cutting and stripping, ultra-short wire cutting and stripping, jacket wire cutting and stripping, multi place stripping, etc. All process parameters can be saved along in the touch screen. The customer has his choice of rubber rollers or iron rollers depending on his requirements. This stripping machine is equipped with superior tungsten steel blades/knife, guarantee smooth and stable working performance.
* Available wire size:4-10mm
* Voltage:220V/50HZ
* Diameter:3.0-8.0mm
* Display:7”LCD screen
* Power:700W
* Dimension:770*740*400mm
* Weight:120KG
* Cutting length:50-9999mm
* Cutting tolerance:±0.002 *L( Cutting length)
* Truncation error:Can correct
* Outside layers:More than 35mm
* Outside layer Stripping length Tail: 35-100mm, End:35- 150mm
* Inside layer Stripping length:Tail & End: 2-10mm
* Air pressure:0.4-0.6 Mpa
* Memory function:Max 100 sets
* Suitable cable:Inside two cores, three cores cables/ PVC/Teflon/silicone cable/glass fiber wire etc
* Productivity:(Cutting length=100mm)1000 pcs/H
Double layes Round Jacket Cable Cutting and stripping machine BJ-HT3
Payment & Delivery
* MOQ: 1 Unit
* Port: Shanghai
* Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal
* Packaging Material: Paper/Wood
* Packaging Type: Cartons
* Delivery: We’ll arrange delivery within 3 days on the receipt of payment.
We Provide
* Best products and factory price.
* On-time delivery and the shortest delivery time.
* 1-year warranty. If our products cannot function properly within 12 months, we’ll offer spare parts for free; and you need to pay for the delivery.
* OEM and customized service.
* User manuals will go with relative machines.
Service
* QC: All products will be checked before delivery.
* Compensation: If any unqualified product is found, we’ll pay the compensation or send new qualified products to customers.
* Maintenance & Repair: In case of any maintenance or repair need, we’ll help to find out the problem and offer relative guidance.
* Operation Guidance: If you have any problem with operation, please feel free to contact us.
Related Terminal Crimping Machine
| Model Number | BJ-601E | BJ-602E | BJ-603E | BJ-604E |
| Crimping range | 0.5-16mm2 | 0.5-16mm2 | 0.5-50mm2 | 0.08-120mm2 |
| Output | 2.5T | 1.8T | 2.5T | 2.5T |
| Voltage range | AC 220V | AC 220V | AC 220V | AC 220V |
| Weight | 10kg | 6kg | 6kg | 6.5kg |
Features
* Air pressure: 1.5-2.5kg/cm2
* Rating: 10W
* Twising length: 5-60mm
* Twisting area: 0.1-2 mm2
* Power supply： 110/220V AC 50/60Hz
* Size: L340*W190*H170mm
* Weight is 18kg
Payment & Delivery
* MOQ: 1 Unit
* Port: Shanghai
* Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal
* Packaging Material: Paper/Wood
* Packaging Type: Cartons
* Delivery: We’ll arrange delivery within 3 days on the receipt of payment.
We Provide
* Best products and factory price.
* On-time delivery and the shortest delivery time.
* 1-year warranty. If our products cannot function properly within 12 months, we’ll offer spare parts for free; and you need to pay for the delivery.
* OEM and customized service.
* User manuals will go with relative machines.
Service
* QC: All products will be checked before delivery.
* Compensation: If any unqualified product is found, we’ll pay the compensation or send new qualified products to customers.
* Maintenance & Repair: In case of any maintenance or repair need, we’ll help to find out the problem and offer relative guidance.
* Operation Guidance: If you have any problem with operation, please feel free to contact us.
]]>
