* Bottle labelers enable the user to label all kinds of cylindrical objects.
* High accuracy and high apeed,dispensing & labeling automatically.
* The complete operation is PLC based.
* Can be widely used in various vertical round bottles. Suitable for small production.
* Label head stepper motor
* Emergency safety Off button
Specification
* Machine size:1270*100*78cm
* Output speed:20-200PCS/min
* Available bottle diameter:20-140mm
* Labe height:15-150mm
* Labe height:25-300mm
* Pastes the sign precision:+-1mm
* Label Inside diameter:76mm
* Label outside diameter:250mm
* Power supply:220V/110V 1KW 50/60HZ
* Weight:180kg
* Package size:1270*80*78cm

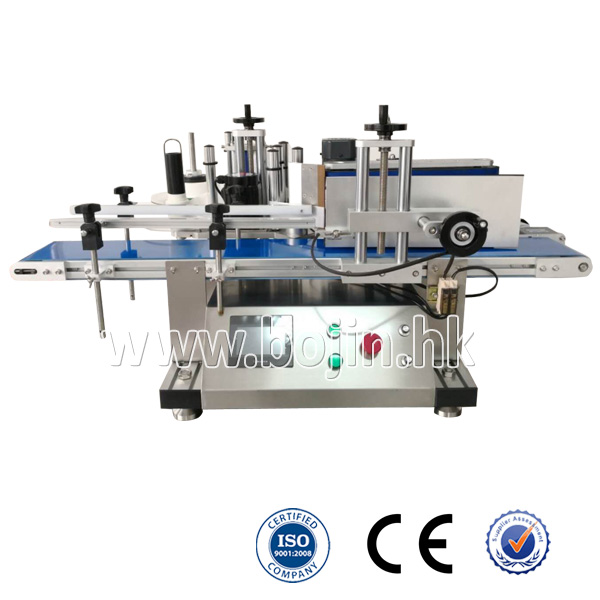

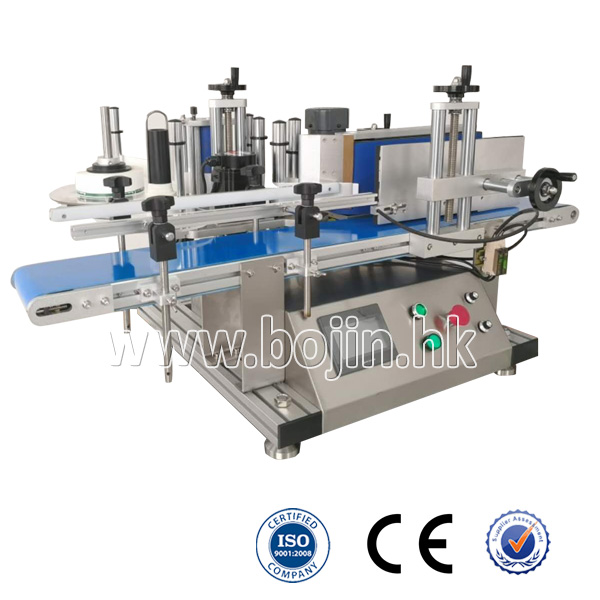

Tabletop Round Bottle Labeling Machine BJ-210T
Tabletop Round Bottle Labeling Machine BJ-210T
Payment & Delivery
* MOQ: 1 Unit
* Port: Shanghai
* Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal
* Packaging Material: Paper/Wood
* Packaging Type: Cartons
* Delivery: We’ll arrange delivery within 3 days on the receipt of payment.
We Provide
* Best products and factory price.
* On-time delivery and the shortest delivery time.
* 1-year warranty. If our products cannot function properly within 12 months, we’ll offer spare parts for free; and you need to pay for the delivery.
* OEM and customized service.
* User manuals will go with relative machines.
Service
* QC: All products will be checked before delivery.
* Compensation: If any unqualified product is found, we’ll pay the compensation or send new qualified products to customers.
* Maintenance & Repair: In case of any maintenance or repair need, we’ll help to find out the problem and offer relative guidance.
* Operation Guidance: If you have any problem with operation, please feel free to contact us.
* Accuracy: ±1mm
* Speed: 40 – 60pcs per minute
* Label Width: 10 ~ 120mm
* Label Roll ID: 75mm
* Max. OD of Label Roll: 300mm
* Label Roll ID: 76mm
* Max. OD of Label Roll: 300mm
* Air pressure: 0.4 ~ 0.6MPa
* Power Supply: 220/110V 50/60Hz
* Power Rating: 200W
* Dimension: 30×20×40cm
* Weight: 20Kg
* The position of labeler head is adjustable, up and down, forward and back.
* Suitable for kinds of flat surface, such as square box

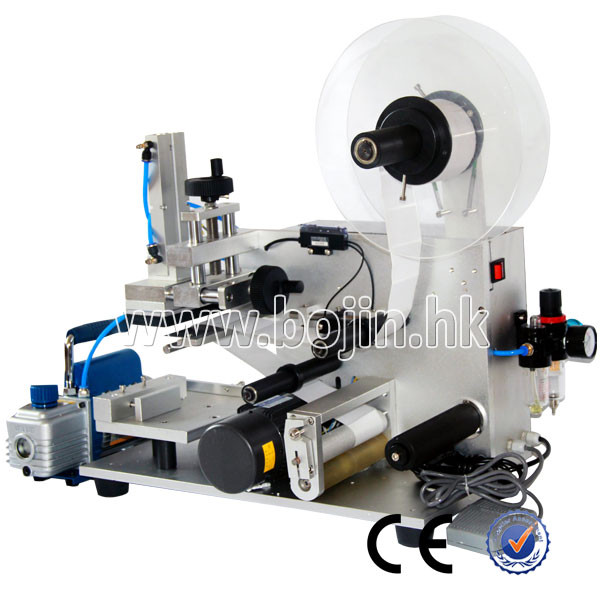

BJ-60C Semi-Auto Flat Bottle Labeling Lachine With Code PrinterPayment & Delivery
* MOQ: 1 Unit
* Port: Shanghai
* Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal
* Packaging Material: Paper/Wood
* Packaging Type: Cartons
* Delivery: We’ll arrange delivery within 3 days on the receipt of payment.
We Provide
* Best products and factory price.
* On-time delivery and the shortest delivery time.
* 1-year warranty. If our products cannot function properly within 12 months, we’ll offer spare parts for free; and you need to pay for the delivery.
* OEM and customized service.
* User manuals will go with relative machines.
Service
* QC: All products will be checked before delivery.
* Compensation: If any unqualified product is found, we’ll pay the compensation or send new qualified products to customers.
* Maintenance & Repair: In case of any maintenance or repair need, we’ll help to find out the problem and offer relative guidance.
* Operation Guidance: If you have any problem with operation, please feel free to contact us.
Semi-automatic plane labeling machine of BOJIN the model is BJ-513, following is the basic information of the equipment, please have a see.
Product’s Picture
BJ-513 Semi-Automatic 0val Double Sides Labeling Machine
Product Details
The Basic Purpose
◆ Paste label by the way of sucking-sticking, to achieve all kinds of plane labeling. Such as cosmetics flat bottles, packing boxes, labeling on the plastic cap and so on.
◆ Change the covering mechanism, make it suitable to the uneven surface’s labeling, such as concave flat, arc surface’s labeling and so on.
◆ Change the tool, make it applicable to a variety of irregular goods’ labeling.
◆ Optional ribbon coding machine and ink-jet printer, to print batch NO. and the production date on the label at the same time, to achieve a coding – Labeling’s integration.

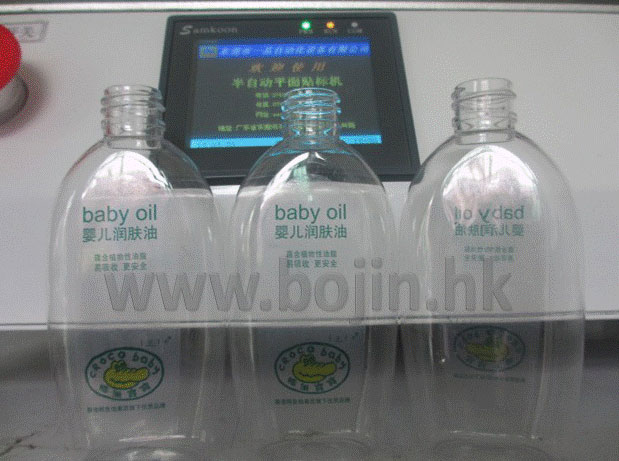

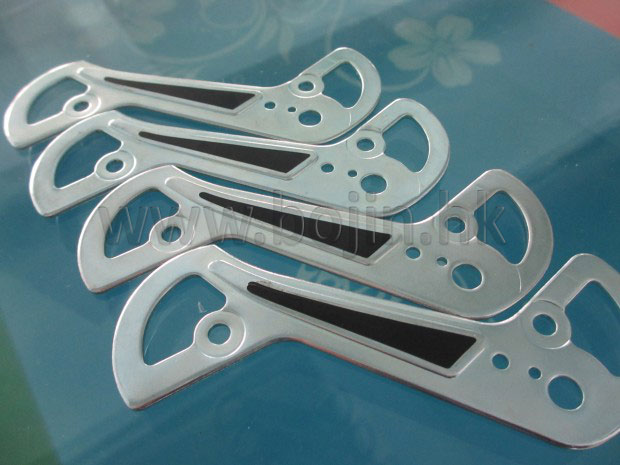

Label Samples
BJ-513 Semi-Automatic 0val Double Sides Labeling Machine
BJ-513 Semi-Automatic 0val Double Sides Labeling Machine
BJ-513 Semi-Automatic 0val Double Sides Labeling Machine
BJ-513 Semi-Automatic 0val Double Sides Labeling Machine

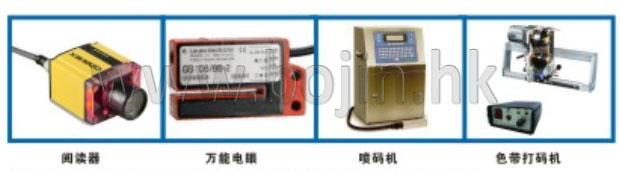

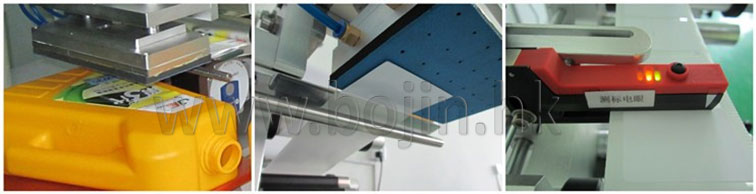

Optional Features
Reader: Read 2D codes, bar codes and other information, establish products’ database for products’ traceability.
All-purpose Electric Eyes: General electric eyes cannot detect transparent labels, Leuze Electric Eye imported from Germany should be chose to be supportive.
Ink-jet printer: Can be equipped with the mainstream ink-jet printer in the market, print at specified location on the label, which can be combined with labeling machines perfectly.
Coder: Use thermal coder to print production date, expiration date, batch number and other information.

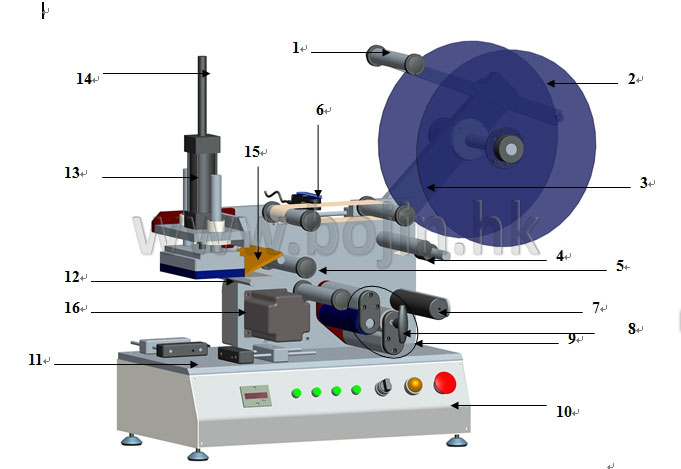

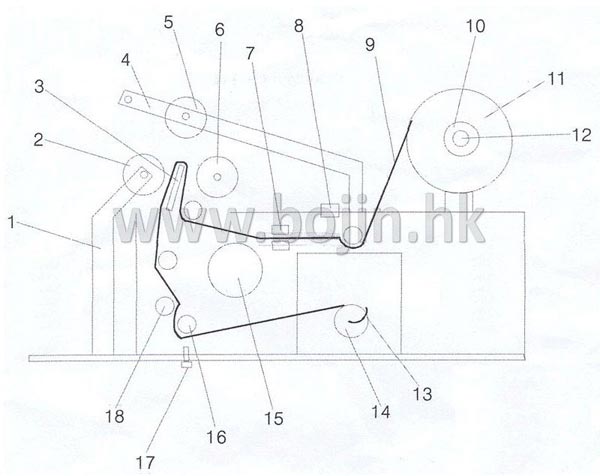

Whole View
| NO. | Mechanism’s Name | Mechanism’s Description |
| 1 | The Brake of Feed Tray | The prevention of over labeling |
| 2 | Feed Tray | Ready to put on label volumes |
| 3 | Rack | |
| 4 | Shrapnel to Press the Label | Press the label to ensure the label’s tension |
| 5 | Roller | For label’s detour |
| 6 | Label Detecting Electric-eye | Detect the label |
| 7 | The Material Receiving Machine | Recycle the label’s backing sheet |
| 8 | ‘T’Shape Handle | Fasten the drawing mechanism |
| 9 | Drawing Mechanism | By pulling the backing sheet, peel off the label, the degree of tightness can be adjusted |
| 10 | Electric Controlling Box | Used for the electric circuit configuration of the machine |
| 11 | Tool Table | Used to put on workpiece |
| 12 | Air Blowing Pipe | Hold up the label and transit it to the sucker successfully in the process of label peeling |
| 13 | Air Cylinder | Used to finish the action of labeling |
| 14 | Fine Adjustment Screw | Small adjustment for sucker and the height of workpiece |
| 15 | Film to Press the Label | Guarantee the tension of the label |
| 16 | Drawing Motor | Provide power to the label belt |

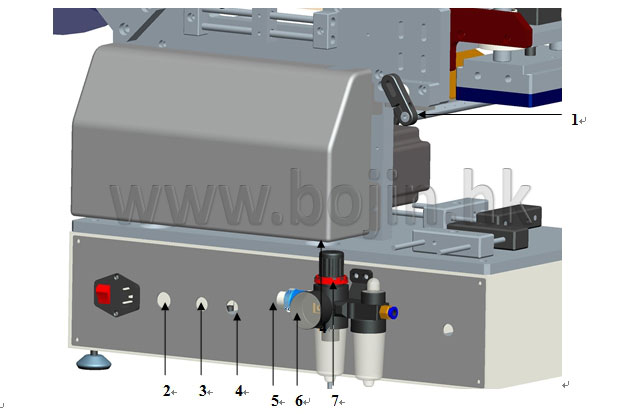

Rear view
1.Air Blowing Pipe 2.Pedal Interface 3.Standby Port 4. Standby Port 5.Air Pipe Interface 6.Barometer 7.Air Pressure Governor
Scope
◆ Applicable Label: adhesive label, adhesive film, electronic supervision code, bar code, etc.
◆ Applicable Products: The products required to be labeled on the plane, cambered surface , circumferential surface, concave surface, convex surface or other surfaces.
◆ Industry: Widely used in cosmetics, food, toys, daily chemical, electronics, pharmaceutical and other industries;
◆ Application: The labeling of shampoo flat bottles , packing box’s labeling, bottle caps, plastic shell, etc.
Technical Parameters
| Parameter Name | Specific Parameter Values |
| Labeling Accuracy | ± 0.5mm (except for products & labels’ error) |
| Labeling Speed | 15 to 25 pcs / min (related to products’ size) |
| Applicable Products’ Size | Length: 20mm ~ 200mm; Width: 20mm ~ 150mm;Thick:0.2mm~120mm |
| Applicable Label’s Size | Length: 15mm ~ 200mm; Width: 20mm ~ 200mm |
| Machine’s Size | Approximately 850mm × 410mm × 720mm (length × width × height) |
| Power supply | 220V/50HZ |
| Total Weight | Approximately 41Kg |
| Applicable label’s inner diameter | ?76mm |
| Applicable label’s outer diameter | ? 240mm |
| Voltage | 220V |
| Air Pressure | 0.4-0.6Mpa |
Working Process
◆ Core working principle :When the sensor detects the product or receives the signal sent from the pedal, the sucker which is sucking the label falls to label and covers the product, and then goes back to the original location to suck the next label and wait for the next label signal. The whole movements of the labeling have been finished.
◆ Procedure: Put the product -> Judge if product arrives (controlled by the detecting equipment or manually)-> Label and cover it(the device can achieve it automatically)->Remove the labeled products.

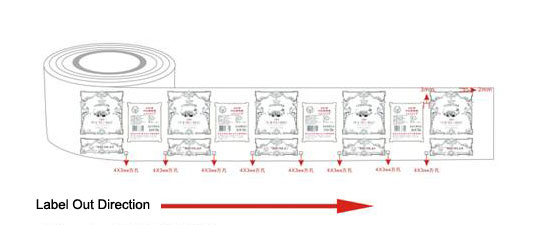

The following is the process of making label for a semi-automatic plane positioning machine.
(It can be sent directly to the label manufacturer for label production):
Note:
1.Distance between each two labels is 2-4mm
2.Use glassine paper
3.Inner diameter of label roll: 76mm, outer diameter: less than 260mm
Producing Requirements:
1. The distance between each two labels is 2-4mm;
2. The labels’ backing paper is made from glassine material, because this paper has good toughness in order to prevent being pulled apart
3. The inner diameter of label roll is 76mm, the outer diameter is less than 260mm, arranged in a single row.
The process of making label above should be combined with your products. The specific requirements please refer to the result of communication with our engineers!
Functional Features
◆ Powerful features, can be used for many kinds of workpiece labeling, such as plane, arc surface, concave plane and irregular workpiece.
◆Accurate when labeling, high stability, using PLC+ stepper motor drive to send label exactly; The feed tray that matched with brake function to make sure the tightness of the label belt, to ensure the accurate of label detection ; The label goes around the correction mechanism to prevent the label moving from left to right.
◆Strong and durable. Electric circuit and gas circuit are arranged separately. The gas circuit is matched with clean-up device to avoid the water in the air to damage the electrical equipment, lengthening its life; The whole machine is mainly made of stainless steel and high quality aluminium alloy.;
◆Convenient adjustment, it has a device which can adjust the height to fit different heights’ need and need not to change the tools frequently.
◆Beautiful shape. The bottom of the labeling machine is a electric box, equipped with stainless steel and high quality aluminium alloy, making it elegant and high-class;
◆Equipped with two ways to label: manual and automatic, worker can achieve labeling- control through sensor or pedal; Setting manual or automatic control button , and the length of the label can be controlled optionally.
◆Optional features and components: Thermal coding or ink jet, deliver products automatically, gather the products automatically(considered with products);special electric eye for labeling
Payment & Delivery
* MOQ: 1 Unit
* Port: Shanghai
* Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal
* Packaging Material: Paper/Wood
* Packaging Type: Cartons
* Delivery: We’ll arrange delivery within 3 days on the receipt of payment.
We Provide
* Best products and factory price.
* On-time delivery and the shortest delivery time.
* 1-year warranty. If our products cannot function properly within 12 months, we’ll offer spare parts for free; and you need to pay for the delivery.
* OEM and customized service.
* User manuals will go with relative machines.
Service
* QC: All products will be checked before delivery.
* Compensation: If any unqualified product is found, we’ll pay the compensation or send new qualified products to customers.
* Maintenance & Repair: In case of any maintenance or repair need, we’ll help to find out the problem and offer relative guidance.
* Operation Guidance: If you have any problem with operation, please feel free to contact us.
Feature
* The position of labeler head is adjustable, up and down, forward and back.
* Suitable for kinds of flat surface, such as square box.
* Good labeling quality, no air bubble, no ruga.
* Compact body, need not maintenance.
Specifications
* Model: BJ-220+S
* Drive way: Step by step motor
* Labeling Speed: 0-200 pcs/min
* Diameter of Bottle: 10-100mm
* Height of Bottle: 25-350mm
* Label size: Width 10-150mm Length: 15-300mm
* Accuracy: ± 1mm (according to the bottle)
* Max OD of Lable roll: 300mm
* Label roll ID: 75mm
* Weight: 200kg
* Power: AC110V/220V 50/60HZ 500W
* Dimension: 2000X1300X1500mm
Fully Automatic Flat Labeling Machine BJ-220+SPayment & Delivery
* MOQ: 1 Unit
* Port: Shanghai
* Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal
* Packaging Material: Paper/Wood
* Packaging Type: Cartons
* Delivery: We’ll arrange delivery within 3 days on the receipt of payment.
We Provide
* Best products and factory price.
* On-time delivery and the shortest delivery time.
* 1-year warranty. If our products cannot function properly within 12 months, we’ll offer spare parts for free; and you need to pay for the delivery.
* OEM and customized service.
* User manuals will go with relative machines.
Service
* QC: All products will be checked before delivery.
* Compensation: If any unqualified product is found, we’ll pay the compensation or send new qualified products to customers.
* Maintenance & Repair: In case of any maintenance or repair need, we’ll help to find out the problem and offer relative guidance.
* Operation Guidance: If you have any problem with operation, please feel free to contact us

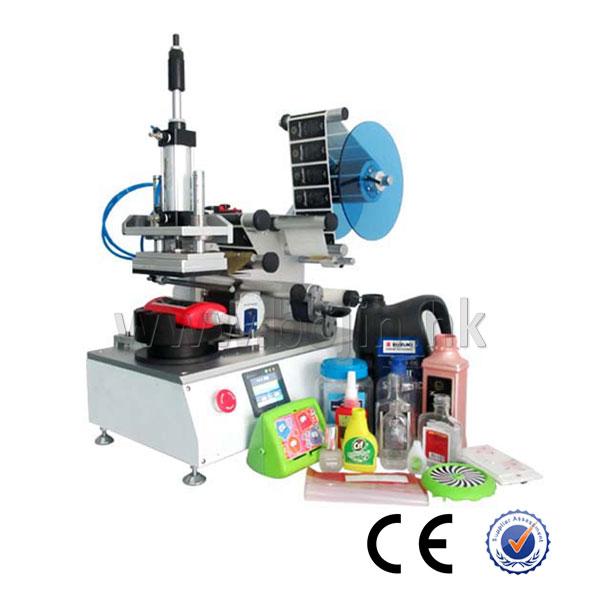

Semi-automatic plane labeling machine of BOJIN the model is BJ-511F, following is the basic information of the equipment, please have a see.
Product’s Picture
Product Details
The Basic Purpose
◆ Paste label by the way of sucking-sticking, to achieve all kinds of plane labeling. Such as cosmetics flat bottles, packing boxes, labeling on the plastic cap and so on.
◆ Change the covering mechanism, make it suitable to the uneven surface’s labeling, such as concave flat, arc surface’s labeling and so on.
◆ Change the tool, make it applicable to a variety of irregular goods’ labeling.
◆ Optional ribbon coding machine and ink-jet printer, to print batch NO. and the production date on the label at the same time, to achieve a coding – Labeling’s integration.
Label Samples
BJ-511F Semi-Automatic Plane Labeling Machine
BJ-511F Semi-Automatic Plane Labeling Machine
BJ-511F Semi-Automatic Plane Labeling Machine
BJ-511F Semi-Automatic Plane Labeling Machine
Optional Features
Reader: Read 2D codes, bar codes and other information, establish products’ database for products’ traceability.
All-purpose Electric Eyes: General electric eyes cannot detect transparent labels, Leuze Electric Eye imported from Germany should be chose to be supportive.
Ink-jet printer: Can be equipped with the mainstream ink-jet printer in the market, print at specified location on the label, which can be combined with labeling machines perfectly.
Coder: Use thermal coder to print production date, expiration date, batch number and other information.
Whole View
| NO. | Mechanism’s Name | Mechanism’s Description |
| 1 | The Brake of Feed Tray | The prevention of over labeling |
| 2 | Feed Tray | Ready to put on label volumes |
| 3 | Rack | |
| 4 | Shrapnel to Press the Label | Press the label to ensure the label’s tension |
| 5 | Roller | For label’s detour |
| 6 | Label Detecting Electric-eye | Detect the label |
| 7 | The Material Receiving Machine | Recycle the label’s backing sheet |
| 8 | ‘T’Shape Handle | Fasten the drawing mechanism |
| 9 | Drawing Mechanism | By pulling the backing sheet, peel off the label, the degree of tightness can be adjusted |
| 10 | Electric Controlling Box | Used for the electric circuit configuration of the machine |
| 11 | Tool Table | Used to put on workpiece |
| 12 | Air Blowing Pipe | Hold up the label and transit it to the sucker successfully in the process of label peeling |
| 13 | Air Cylinder | Used to finish the action of labeling |
| 14 | Fine Adjustment Screw | Small adjustment for sucker and the height of workpiece |
| 15 | Film to Press the Label | Guarantee the tension of the label |
| 16 | Drawing Motor | Provide power to the label belt |
Rear view
1.Air Blowing Pipe 2.Pedal Interface 3.Standby Port 4. Standby Port 5.Air Pipe Interface 6.Barometer 7.Air Pressure Governor
Scope
◆ Applicable Label: adhesive label, adhesive film, electronic supervision code, bar code, etc.
◆ Applicable Products: The products required to be labeled on the plane, cambered surface , circumferential surface, concave surface, convex surface or other surfaces.
◆ Industry: Widely used in cosmetics, food, toys, daily chemical, electronics, pharmaceutical and other industries;
◆ Application: The labeling of shampoo flat bottles , packing box’s labeling, bottle caps, plastic shell, etc.
Technical Parameters
| Parameter Name | Specific Parameter Values |
| Labeling Accuracy | ± 0.5mm (except for products & labels’ error) |
| Labeling Speed | 15 to 25 pcs / min (related to products’ size) |
| Applicable Products’ Size | Length: 20mm ~ 200mm; Width: 20mm ~ 150mm;Thick:0.2mm~120mm |
| Applicable Label’s Size | Length: 15mm ~ 200mm; Width: 20mm ~ 200mm |
| Machine’s Size | Approximately 850mm × 410mm × 720mm (length × width × height) |
| Power supply | 220V/50HZ |
| Total Weight | Approximately 41Kg |
| Applicable label’s inner diameter | ?76mm |
| Applicable label’s outer diameter | ? 240mm |
| Voltage | 220V |
| Air Pressure | 0.4-0.6Mpa |
Working Process
◆ Core working principle :When the sensor detects the product or receives the signal sent from the pedal, the sucker which is sucking the label falls to label and covers the product, and then goes back to the original location to suck the next label and wait for the next label signal. The whole movements of the labeling have been finished.
◆ Procedure: Put the product -> Judge if product arrives (controlled by the detecting equipment or manually)-> Label and cover it(the device can achieve it automatically)->Remove the labeled products.
The following is the process of making label for a semi-automatic plane positioning machine.
(It can be sent directly to the label manufacturer for label production):
Note:
1.Distance between each two labels is 2-4mm
2.Use glassine paper
3.Inner diameter of label roll: 76mm, outer diameter: less than 260mm
Producing Requirements:
1. The distance between each two labels is 2-4mm;
2. The labels’ backing paper is made from glassine material, because this paper has good toughness in order to prevent being pulled apart
3. The inner diameter of label roll is 76mm, the outer diameter is less than 260mm, arranged in a single row.
The process of making label above should be combined with your products. The specific requirements please refer to the result of communication with our engineers!
Functional Features
◆ Powerful features, can be used for many kinds of workpiece labeling, such as plane, arc surface, concave plane and irregular workpiece.
◆Accurate when labeling, high stability, using PLC+ stepper motor drive to send label exactly; The feed tray that matched with brake function to make sure the tightness of the label belt, to ensure the accurate of label detection ; The label goes around the correction mechanism to prevent the label moving from left to right.
◆Strong and durable. Electric circuit and gas circuit are arranged separately. The gas circuit is matched with clean-up device to avoid the water in the air to damage the electrical equipment, lengthening its life; The whole machine is mainly made of stainless steel and high quality aluminium alloy.;
◆Convenient adjustment, it has a device which can adjust the height to fit different heights’ need and need not to change the tools frequently.
◆Beautiful shape. The bottom of the labeling machine is a electric box, equipped with stainless steel and high quality aluminium alloy, making it elegant and high-class;
◆Equipped with two ways to label: manual and automatic, worker can achieve labeling- control through sensor or pedal; Setting manual or automatic control button , and the length of the label can be controlled optionally.
◆Optional features and components: Thermal coding or ink jet, deliver products automatically, gather the products automatically(considered with products);special electric eye for labeling
Payment & Delivery
* MOQ: 1 Unit
* Port: Shanghai
* Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal
* Packaging Material: Paper/Wood
* Packaging Type: Cartons
* Delivery: We’ll arrange delivery within 3 days on the receipt of payment.
We Provide
* Best products and factory price.
* On-time delivery and the shortest delivery time.
* 1-year warranty. If our products cannot function properly within 12 months, we’ll offer spare parts for free; and you need to pay for the delivery.
* OEM and customized service.
* User manuals will go with relative machines.
Service
* QC: All products will be checked before delivery.
* Compensation: If any unqualified product is found, we’ll pay the compensation or send new qualified products to customers.
* Maintenance & Repair: In case of any maintenance or repair need, we’ll help to find out the problem and offer relative guidance.
* Operation Guidance: If you have any problem with operation, please feel free to contact us.
Specifications:
* Voltage: AC200V/50Hz
* Power: 150w
* Label dimension: max: 120wx400l min:10wx30l
* Round bottle dimension: max: ?125mm. min: ?20mm
* Label inner core dimension: internal diameter: ?75mm; external diameter: ?300mm
* External dimension: 580x680x860mm
* Net weight: 45kg(including code machine)
Feature:
1. Adopt imported electromagnetic clutch with high accuracy
2. High-class aluminium alloy with long service life
3. Adopt the electric engine from the famous factory to make sure high load and long period of operation
4. All parts and standard components are made of stainless steel.
5. PLC control pane and LCD display the era sensation.
6. Imported label inspection optical coupler can ensure high precision.
7. It is applied to the labeling coding of round bottles like glass bottle, plastic bottle, can and so on.

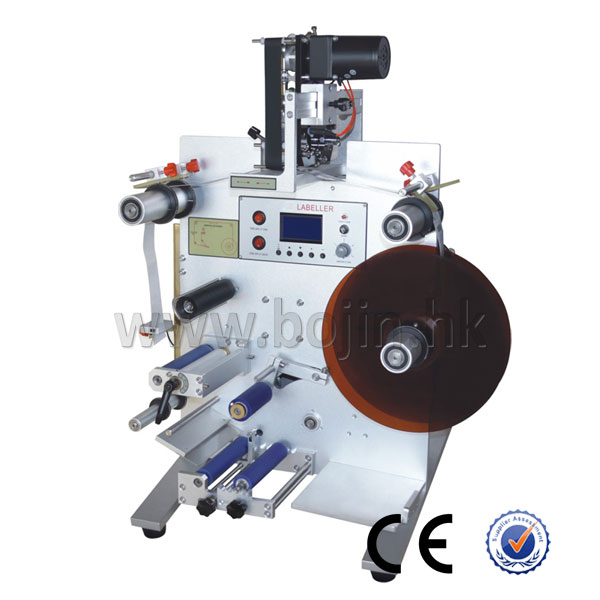

Double-sided Round Bottle Labeling Machine (BJ-S130)
Payment & Delivery
* MOQ: 1 Unit
* Port: Shanghai
* Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal
* Packaging Material: Paper/Wood
* Packaging Type: Cartons
* Delivery: We’ll arrange delivery within 3 days on the receipt of payment.
We Provide
* Best products and factory price.
* On-time delivery and the shortest delivery time.
* 1-year warranty. If our products cannot function properly within 12 months, we’ll offer spare parts for free; and you need to pay for the delivery.
* OEM and customized service.
* User manuals will go with relative machines.
Service
* QC: All products will be checked before delivery.
* Compensation: If any unqualified product is found, we’ll pay the compensation or send new qualified products to customers.
* Maintenance & Repair: In case of any maintenance or repair need, we’ll help to find out the problem and offer relative guidance.
* Operation Guidance: If you have any problem with operation, please feel free to contact us
Specifications:
* Precision: ±1mm
* Label roll: Max:300mm
* Label core: Stander:75mm
* Machine size:2000x1300x1500mm
* Weight: 200kg
* Power: AC110V/220V 50/60Hz 500w
* Coding device: HP-260Q
Feature:
1.The machine is widely used in the fields of food, medicine, and fine chemical like oral liquid bottles, ampoule bottles.
2.Use motor to control and the touch screen of the human-machine-conversation type, which makes the operation easy and achieve high-speed and accurate labeling.
Double sides fully automatic labeling machine BJ-V300Payment & Delivery
* MOQ: 1 Unit
* Port: Shanghai
* Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal
* Packaging Material: Paper/Wood
* Packaging Type: Cartons
* Delivery: We’ll arrange delivery within 3 days on the receipt of payment.
We Provide
* Best products and factory price.
* On-time delivery and the shortest delivery time.
* 1-year warranty. If our products cannot function properly within 12 months, we’ll offer spare parts for free; and you need to pay for the delivery.
* OEM and customized service.
* User manuals will go with relative machines.
Service
* QC: All products will be checked before delivery.
* Compensation: If any unqualified product is found, we’ll pay the compensation or send new qualified products to customers.
* Maintenance & Repair: In case of any maintenance or repair need, we’ll help to find out the problem and offer relative guidance.
* Operation Guidance: If you have any problem with operation, please feel free to contact us
Specifications
* Model: BJ-50
* Accuracy: ±0.5mm
* Speed: 25 – 50pcs per minute
* Available Bottle OD: 10 ~ 150mm
* Label Width: 8 ~ 150mm
* Label Length: 15 ~ 315mm
* Label Roll ID: 76mm
* Max. OD of Label Roll: 250mm
* Power Supply: 220/110V 50/60Hz
* Power Rating: 120W
* Dimension: 65×45×45cm
* Weight: 28Kg
Outside detail packing:
Feature
* Bottle labelers enable the user to label all kinds of cylindrical objects.
* High accuracy and high apeed,dispensing & labeling automatically.
Payment & Delivery
* MOQ: 1 Unit
* Port: Shanghai
* Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal
* Packaging Material: Paper/Wood
* Packaging Type: Cartons
* Delivery: We’ll arrange delivery within 3 days on the receipt of payment.
We Provide
* Best products and factory price.
* On-time delivery and the shortest delivery time.
* 1-year warranty. If our products cannot function properly within 12 months, we’ll offer spare parts for free; and you need to pay for the delivery.
* OEM and customized service.
* User manuals will go with relative machines.
Service
* QC: All products will be checked before delivery.
* Compensation: If any unqualified product is found, we’ll pay the compensation or send new qualified products to customers.
* Maintenance & Repair: In case of any maintenance or repair need, we’ll help to find out the problem and offer relative guidance.
* Operation Guidance: If you have any problem with operation, please feel free to contact us.
Related Round Bottle Labeling Machine
| Model | Available Bottle OD | Label Width | Label Length |
| BJ-50 | 10 ~ 150mm | 8 ~ 150mm | 15 ~ 315mm |
| BJ-70 | 10 ~ 150mm | 8 ~ 150mm | 15 ~ 315mm |
| BJ-80 | 10 ~ 150mm | 8 ~ 150mm | 15 ~ 210mm |
| BJ-90 | 10 ~ 150mm | 8 ~ 150mm | 15 ~ 210mm |
Specifications
* Model: BJ-70
* Accuracy: ±0.5mm
* Speed: 25 – 50pcs per minute
* Available Bottle OD: 10 ~ 150mm
* Label Width: 8 ~ 150mm
* Label Length: 15 ~ 315mm
* Label Roll ID: 76mm
* Max. OD of Label Roll: 250mm
* Power Supply: 220/110V 50/60Hz
* Power Rating: 120W
* Dimension: 65×45×45cm
* Weight: 28Kg
Feature
* Labelers enable the user to label all kinds of cylindrical objects.
* High accuracy and high speed, dispensing & labeling automatically.
Payment & Delivery
* MOQ: 1 Unit
* Port: Shanghai
* Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal
* Packaging Material: Paper/Wood
* Packaging Type: Cartons
* Delivery: We’ll arrange delivery within 3 days on the receipt of payment.
We Provide
Best products and factory price.
* On-time delivery and the shortest delivery time.
* 1-year warranty. If our products cannot function properly within 12 months, we’ll offer spare parts for free; and you need to pay for the delivery.
* OEM and customized service.
* User manuals will go with relative machines.
Service
* QC: All products will be checked before delivery.
* Compensation: If any unqualified product is found, we’ll pay the compensation or send new qualified products to customers.
* Maintenance & Repair: In case of any maintenance or repair need, we’ll help to find out the problem and offer relative guidance.
* Operation Guidance: If you have any problem with operation, please feel free to contact us.
Related Round Bottle Labeling Machine
| Model | Available Bottle OD | Label Width | Label Length |
| BJ-50 | 10 ~ 150mm | 8 ~ 150mm | 15 ~ 315mm |
| BJ-70 | 10 ~ 150mm | 8 ~ 150mm | 15 ~ 315mm |
| BJ-80 | 10 ~ 150mm | 8 ~ 150mm | 15 ~ 210mm |
| BJ-90 | 10 ~ 150mm | 8 ~ 150mm | 15 ~ 210mm |
Imported intelligent high-accuracy magic eye and high reliable Computer chip program controller(PLC)control the label and the case, label, using rubber roller pinned bottle the non-drying label followed the bottle in the bottle and put on rotating.
Advantages of product
1. Efficiency is as high as 50 times/minutes.
2. Labeling bottle adjustable, meet different before and after the workpiece labeling needs.
3. Labeling effect is good, no bubble, no creases, grade high, to increase product competitiveness.
4. Choose brand PLC and sensor etc electronic components, performance very stable.
5. Modular design, convenient maintenance and repair costs low.
Technical parameters
1. Voltage: 220V/50Hz / 110V/60Hz
2. Power: 150W
3. Label speed: 25-50pcs/M
4. Label accuracy: ?±1mm
5. Label Roll Inner Diameter: ≥Φ75mm
6. Max Label Roll Out diameter: ≤Φ250mm
7. Products size: Φ40mm-100mm
8. Wide of label: W150mm * L 180mm
9. Printer: None
10. Machine size: 70*60*55cm
11. Weight: 38kg
Operation sequence
1. First installation 2 slices of organic glass tray, respectively in two round installation fixed block, and then you will take slot first set of fixed block nursery dish core shaft, the green o-rings pull to fixed block of the trough, again fixed block screwed.
2. Label installation: the installation rolls label, is direction in clockwise tag along the label, and put the label on the tray to carry the external fixation and lock screw.
3. According to the label will wear the good direction, clockwise around the label head of standard, the bottom standard core clamping device and head out label, the clamp the clamping DaoBiao cylinder lock, otherwise the machine will not work. In the lock DaoBiao clamping cylinder, should pay attention to label the wheel about balance rubber balance rubber balance degree, such as no balance, can appear about labeling the phenomenon of up and down after label. The paragraph tags and bottom mark after must wear on the same level, and put all the film cylinder on the positioning of the circle, to ensure the proper position guide are tags.
Machine diagram & Label stretching chart
| ?1 | ?Positioning arm | ?2 | ?Positioning roll |
| ?3 | ?Stripping plate | ?4 | ?Arm pressure bottle |
| ?5 | ?Rubber roller | ?6 | ?Rubber roller label balance |
| ?7 | ?Magic eye | ?8 | ?Start switch |
| ?9 | ?Label | ?10 | ?Fixed block |
| ?11 | ?Organic glass tray | ?12 | ?Tray pivot |
| ?13 | ?Waste paper clamping device | ?14 | ?Waste paper receiver |
| ?15 | ?Brake motors | ?16 | ?Clamping label guide wheel |
| ?17 | ?Paper feed adjustment screw | ?18 | ?Guide wheel |
4. The power supply plugged into the single-phase power supply (requires a good ground connection).
5. The power supply switch on, adjust the magic eye: Tag magic eye is by amplifier and U fiber-optic first two parts, As shown in Figure:

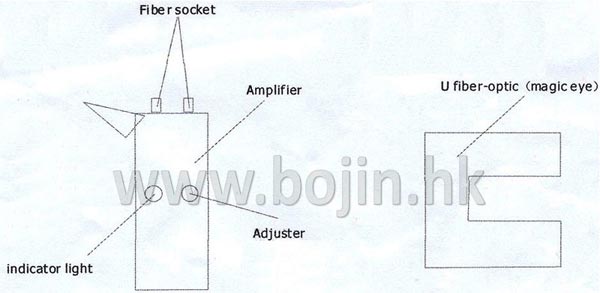

First will U fiber-optic lines of the head of arbitrary insert fiber socket2 centimeters, Then lock, Will regulator counterclockwise transferred to the lowest position, The tag through u-shaped fiber u-shaped slot, Two pieces of the label on fiber position of interval between head, Then the clockwise turn the regulator, Rotating slowly from low to high, Until light so far,
Back-and-forth pull Label, Label when on optical fiber head, indicator light off, Again, that signals a stable fine-tuning. These steps are completed, already successful commissioning that label magic eye. General before they have been tested.
a. Magic eye position: Magic eye position is related to label stopped position, so stay to adjust its position. Different sizes of label the required position is different also, Magic eye if position too back, will appear label is too long, Cause label head cannot adsorption label. Magic eye position quite rely on ahead, Will appear tags too short, Cause tags do not have labeling.
b. label stopped position: Is the index sign in labeling strip out before the length of Stripper plate, By magic eye to control. General adjustment to label head traps by tags just can.
6. Adjust the position of positioning arm: Positioning the bottle on the shelf is positioned to play on the rubber roller can rotate the role of, Depending on the diameter of the bottle, to adjust for the location of the bottle.
7. Pressing down the arm pressure bottle, press to start switch to work, pressure on the arm of the pressure bottle Pressing rubber wheel will rotate week
While rotating the bottle labels adsorbed on the bottle body.
Notice
1. Operators first before use, please be sure to read the instruction
2. Important: Do not locate the bottle of rubber rollers in the case above, there is no pressure bottle pressure arm, otherwise the work will switch to crush!!!
Troubleshooting
1. Labeling action is not normal: Check the label position is normal, Transmission mechanism have labels or foreign bodies stuck.
2. Label head don’t fall or not rise: Check whether normal and stable source.
3. Label do not adsorb: Check whether normal and stable source.
4. Label rolled up: Cheek whether the blowing tube correctly position.
5. Waste paper receiver don’t pull: Check whether the state tension membrane too tight.
Payment & Delivery
* MOQ: 1 Unit
* Port: Shanghai
* Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal
* Packaging Material: Paper/Wood
* Packaging Type: Cartons
* Delivery: We’ll arrange delivery within 3 days on the receipt of payment.
We Provide
* Best products and factory price.
* On-time delivery and the shortest delivery time.
* 1-year warranty. If our products cannot function properly within 12 months, we’ll offer spare parts for free; and you need to pay for the delivery.
* OEM and customized service.
* User manuals will go with relative machines.
Service
* QC: All products will be checked before delivery.
* Compensation: If any unqualified product is found, we’ll pay the compensation or send new qualified products to customers.
* Maintenance & Repair: In case of any maintenance or repair need, we’ll help to find out the problem and offer relative guidance.
* Operation Guidance: If you have any problem with operation, please feel free to contact us.
Related Round Bottle Labeling Machine
| Model | Available Bottle OD | Label Width | Label Length |
| BJ-50 | 10 ~ 150mm | 8 ~ 150mm | 15 ~ 315mm |
| BJ-70 | 10 ~ 150mm | 8 ~ 150mm | 15 ~ 315mm |
| BJ-80 | 10 ~ 150mm | 8 ~ 150mm | 15 ~ 210mm |
| BJ-90 | 10 ~ 150mm | 8 ~ 150mm | 15 ~ 210mm |
